| Model NO: | GYXTW | Strengthen Member:: | Metallic |
|---|---|---|---|
| Cover Material:: | PE | Using:: | Aerial |
| Loose Tube:: | Uni-Tube Cable | Water Blacking Tape:: | Yes |
| Type:: | Singlemode | Fiber Count:: | 2-144 Cores |
| High Light: | GYXTW Fiber Optic Cable,ROHS Fiber Optic Cable,GYXTW fiber network cable | ||
GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 48 Cores For Duct / Aerial
GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
Both single mode type and multimode types are available.

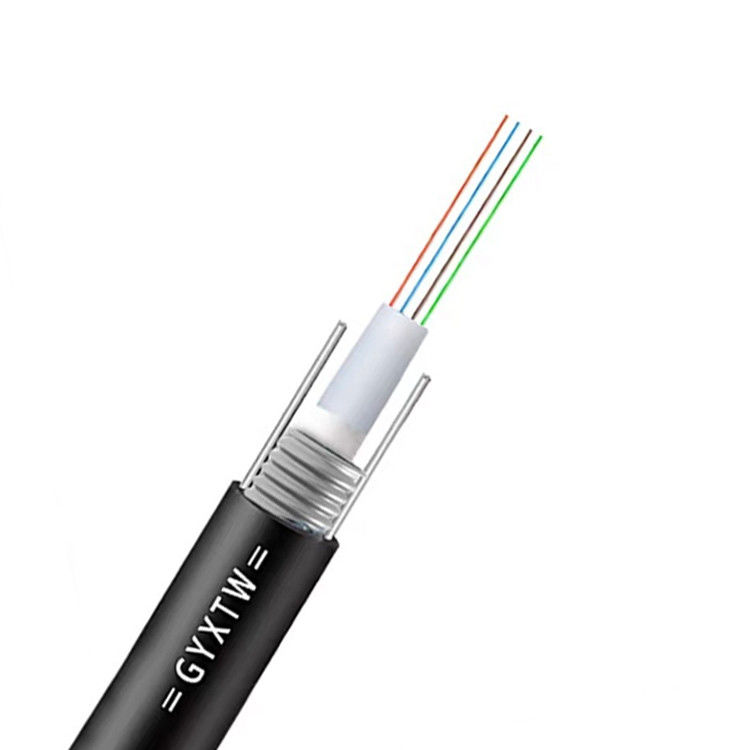

Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
Specification
| Recommended laying methods | Aerial |
| Allpicable fields | Long distance communication and LAN |
| Properties | Water proofing layer providing strong water resistance peformance |
| Steel tape with PE outer enhancing anti-crush and tensile property of cable | |
| Structure characters | Water proofing layer between the steel tape and cable core |
| Double coated PE corrugated steel tape under PE sheath | |
| Parallel double steel wires as strengthen member | |
We can design oval cross section and non-metallic structure on requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc. |
Technicial Data
| Fiber range | Cable weight (kg/km) | Min.bending radius(mm) | Allowable tension(N) | Max.crus loading force(N/1000mm) | ||||
| Cableouter diameter | static | dynamic | short term | long term | short term | long term | ||
| 2-12 | 8.9 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 12-24 | 10.2 | 110 | ||||||
Features
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C
FAQ
1.What is your MOQ?
Could be coordinated if you have detail requirements.
