2 Core Self Support Steel Wire Fiber Optic Drop Cable FTTH GJYXCH

Large Image : 2 Core Self Support Steel Wire Fiber Optic Drop Cable FTTH GJYXCH

Product Details:

Place of Origin:	China
Brand Name:	OEM/ ODM/
Certification:	UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:	GJYXFCH

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Negotiation
Packaging Details:	3000m/wooden drum Drum size:959570cm GW:325KG
Delivery Time:	7~15Work Day
Payment Terms:	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:	100000 Kilometer/Kilometers per Month

Contact Now

2 Core Self Support Steel Wire Fiber Optic Drop Cable FTTH GJYXCH

Description

Jacket::	LSZH/PVC	Jacket Color::	Black,White,as Request
Cable Type::	Singlemode Or Multimode	Fiber Type：:	Fiber Type
Warranty::	5 Years	Fiber Count::	1/2/4 Core
Application::	Telecommunication Networks	Number Of Conductors::	2
High Light:	FTTH Fiber Optic Drop Cable , GJYXCH Fiber Optic Drop Cable

2 Core Self-support Steel Wire Type Fiber Optic Cable FTTH Single Mode Drop Cable GJYXCH GJ

Product Description

Model No.: GJYXCH

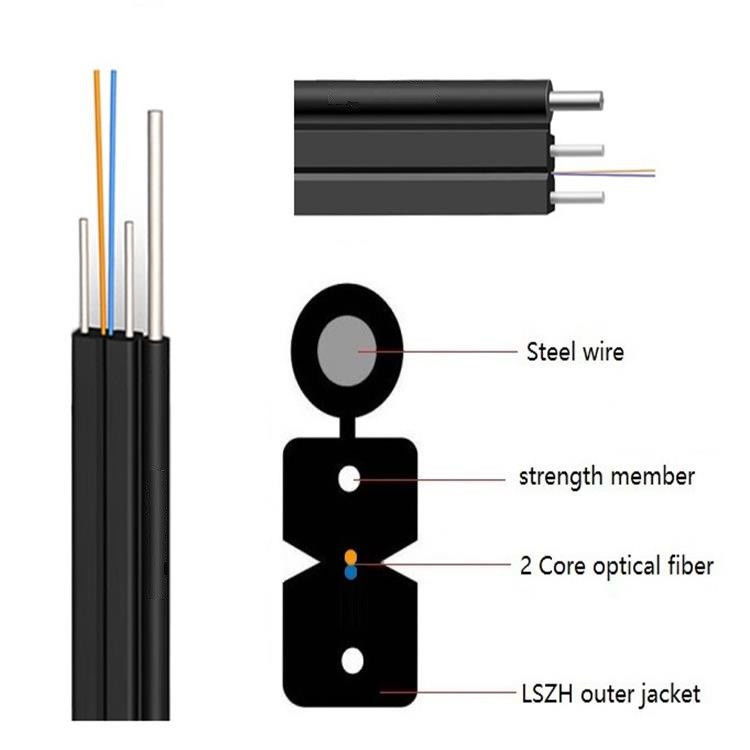

The optical fiber unit is positioned in the centre. Two steel wires or FRP are placed at the two sides. A steel wire as the additional strength member is also applied.Then the cable is completed with a black or color LSZH or PVC sheath.

Cable Options:
1.Fiber Count:1/2/4 Core
2.Fiber Type: G652D, G657A1, or G657A2 single-mode fiber, or other types of fiber
3.Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC) or environmental low smoke zero halogen flame retardant polyolefin (LSZH)
3.Jacket Color: Black,Whitre, or as customer request

Applications:
Used in indoor outdoor cabling,especially used for FTTH.
Used as access building cable.

Features:
1.Compact structure of protable, convenient for indoor wiring.
2.Excellent resistance to lateral pressure protection design.
3.Soft, flexible, easy to splice, and high practicability.
4.Environmental protection. Low smoke, zero alogen and flame retardant sheath.

Model No.	Fiber count (core)	Cable diametre (mm)	Weight (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N)	Bending Radius Static/Dynamic (mm)
GJYXCH	1	(2.1±0.1)×(5.1±0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1±0.1)×(5.1±0.1)	21	1500/2500	500/1300	15/30
GJYXCH	4	(2.1±0.1)×(5.1±0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1±0.1)×(5.1±0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1±0.1)×(5.1±0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	<span style="box-sizing: content-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font
