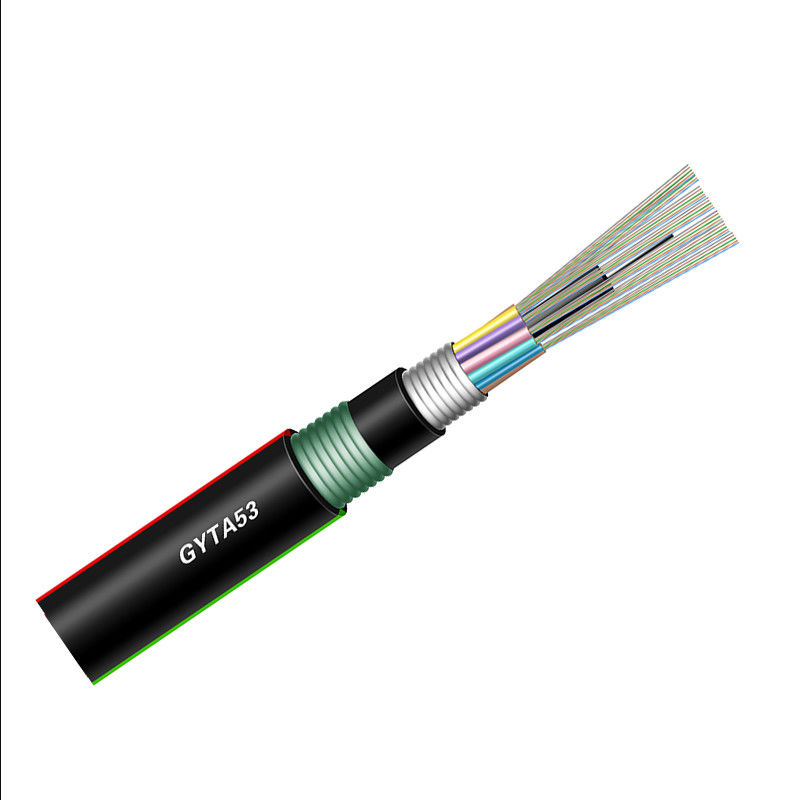

Armored Loose Tube Outdoor Underground GYTA53 Fiber Optic Cable

Underground Armored GYTA53 Outdoor Direct Buried Loose Tube 4 6 8 12 16 18 24 36 48 72 96 144 288 Core Fiber Optic Cable



Description

1.250μm Coloured Fiber

2.PBT loose Tube

3.Tube Filling Compound(Gel)

4.PSP corrugated steel tape armored

5.PE Outer Sheath



Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling



Applications

Directburied, DuctorUnderground conduits.

Backbone.



Structure and Technical Specifications

<td height="19" style="margin: 0px; padding: 0px; border: 1px solid rgb(204, 204, 204); border-image: none; width: 57.75pt; height: 14.25pt; color: rgb(0, 0, 0); line-height: inherit; font-family: inherit; font-size: 11pt; font-variant: inherit; vertical-align: middle; float: none; box-sizing: content-box;

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	Max No. of (Tubes+ fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~30	13.2	162	6	5	3000
