| Pins:: | 8P, 8C | Housing Material:: | PC+METAL |
|---|---|---|---|
| Color:: | Silver, Transparent, Customized | Package:: | 100pcs/bag Or Jar |

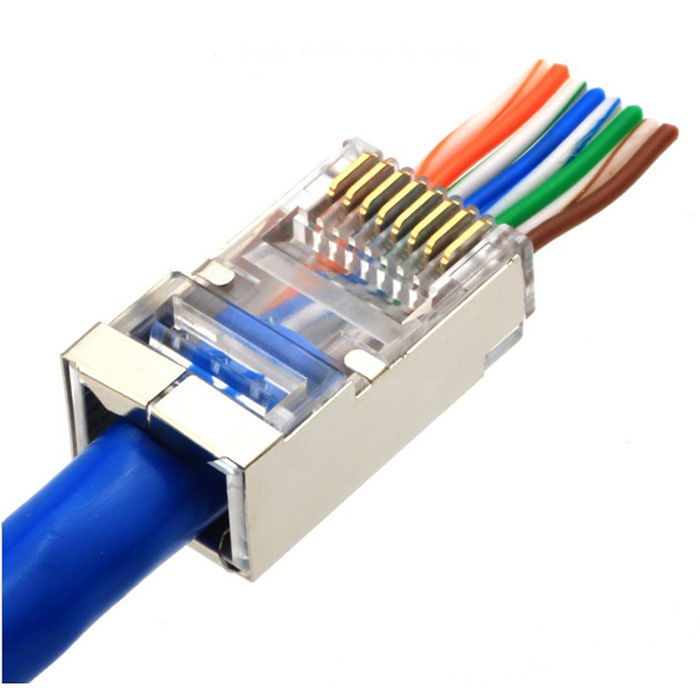

| Gender:: | Male | Product Name:: | Passthrough Shielded RJ45 Connector |
| OD:: | 1.0mm/1.2mm/1.3mm/1.5mm | Cable Type:: | Cat5e Cat6 Cat6A |
| High Light: | Cat6 Network Cable Assembly,STP FTP Network Cable Assembly,Cat5e Network Cable Assembly | ||
RJ45 connector terminates unshielded twisted pair stranded cable for making custom length Ethernet patch cords; supports 24AWG to 28 AWG round or flat stranded wire.
Featres
50 micron gold-plated contacts on 8P8C network connectors provide superior transmission and resist corrosion;
3 prong contact blade suitable for both solid and stranded cable;
Cost-effective modular plugs provide enough connection for a large project or multiple small jobs;
Construct multiple patch cables in the perfect length for router, patch panel, or workstation applications;
Crimp style plugs terminate stranded cable with two point staggered contacts to provide a secure connection;
Compatible with different lan cables;
RJ45 colored strain relief boots protect the clip from accidental damage and bolster the integrity of the cable.
Specification
| Products | CAT5e / Cat6 connector |
| Type | UTP |
| Conductors/Position | 8/8 |
| Prongs | 2 or 3 |
| Gold plating thickness | 0μ, 1μ, 3μ, 6μ, 15μ,30μ, 50μ optional. |
| Max Insulated wire OD | Cat5e: 1.0mm; Cat6: 1.1mm or 1.2mm |
| Operating Temperation | -20°C to +75°C |
| Application | Solid or stranded 23/24AWG network cable |
Application
CCTV, Security Cameras, Routers, Switches, Printers, and Servers, etc.
FAQ
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
