Product Details:
Product Details:
Payment & Shipping Terms:
|
| Model NO: | Fiber Optical Patch Cord | Type:: | Optical Fibers, PC/UPC/APC |
|---|---|---|---|
| Connetcor:: | LC/SC/FC/ST | Connector Type: | SC-SC LC-LC FC-FC ST-ST Or Hybrid |
| Length: | 1m 2m 3m Or Customized | Material:: | PVC/LSZH |
| Application: | FTTH/Test Equipments/TV/LAN/Telecommunication Equipments | Color: | Yellow,Orange Or Others,aqua Or Cusomized |
| High Light: | SC Fiber Optic Patch Cord,UPC-ST Fiber Optic Patch Cord,UPC-ST fiber optic cable patch cord | ||

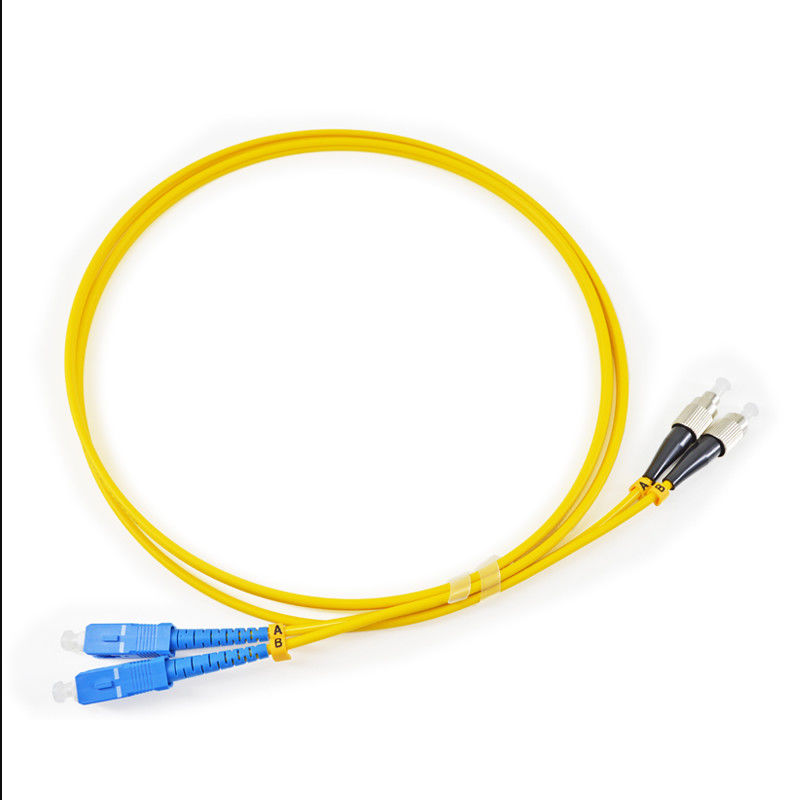

OPTICAL FIBER PATCH CORD SC/UPC-ST/UPC-SM-DUPLEX Jumper Cable sc pc fiber optic patch cable
Features
1.Low insertion loss and hight return loss.
2.Excellent repeatability and changeability
3.Simplex and duplex available.
4.With ceramic fettules.
5.PVC&LSNH cable option.
6.Optical performance 100% factory test.
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | <=0.2dB | <=0.3dB |
| Return Loss | PC≥50dB,UPC≥55dB,APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40℃~+85℃ | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviation:≤3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
Performance Index:
<td colspan="5" style="margin: 0px; padding: 0px; width: 531px; height: 15.| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | |||||
