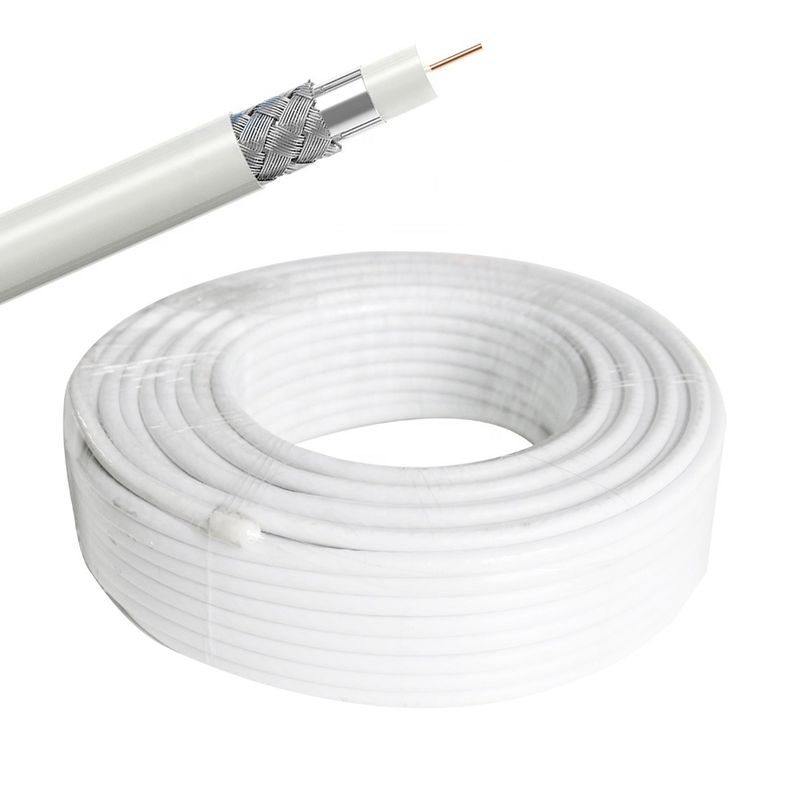

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Large Image :  CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG6

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Description
Number Of Conductor::1Length::100m/200m/300m/customized
Jacket::PVC/PE/LSZHConductor Material::BC/CCS 1.02mm
Shield::Al/Copper Foil+40-95% Al/CCA/Cu BraidingInsulation::FPE
Color::WhiteApplication::CATV
High Light:

CCS Coaxial Cable

,

RG6 Coaxial Cable

,

75ohm Coaxial Cable


CCS Shield PVC/PE Jacket RG6 Quad Shield Coaxial Cable For CATV/Satellite 75ohm



Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
Coverage
40%--95%
95%
40%--95%
40%--95%
<div class="magic-16" style="box-sizing: content-box; margin: 0px; padding: 5px 10px; border: 0px; font: inherit; vertical-align: bas
