Internet 75Ohm RG6 Coaxial TV Cable Al Foil Braiding Shield

Internet 75Ohm RG6 Coaxial TV Cable Al Foil Braiding Shield

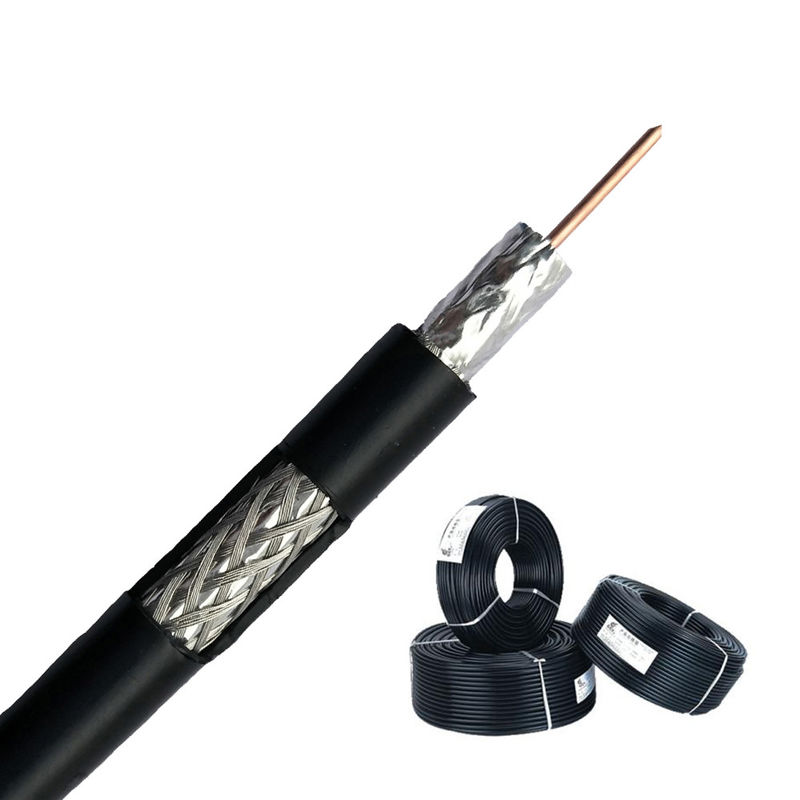

Large Image :  Internet 75Ohm RG6 Coaxial TV Cable Al Foil Braiding Shield

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG6

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100 Meters/ Box
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

Internet 75Ohm RG6 Coaxial TV Cable Al Foil Braiding Shield

Description
Model Number::RG 6 Coaxial CableConductor Material::99.99% Bare Copper
Shield::Al Foil+braidingColor::Black Or White
Application::CATVJacket::PVC
Length::305m 1000ftInsulation::Foam PE
Number Of Conductor::1
High Light:

RG6 Coaxial TV Cable

,

1000ft Coaxial TV Cable

,

ODM Coaxial TV Cable


RG6 Coax Cable For Internet Good Price 75Ohm RG6 Coaxial Cable

Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
Coverage
40%--95%
95%
40%--95%
40%--95%
<div class="magic-16" style="box-sizing: content-box; margin: 0px; padding: 5
