White CU Conductor Coaxial TV Cable For Satellite

White CU Conductor Coaxial TV Cable For Satellite

Large Image :  White CU Conductor Coaxial TV Cable For Satellite

Product Details:

Product Details:

Place of Origin:Guangzhou,China
Brand Name:OEM/ ODM/
Certification:CE/ RoHS/ ETL/ ISO
Model Number:RG59

Payment & Shipping Terms:

Minimum Order Quantity:20000 Meters
Price:Negotiation
Packaging Details:100m/roll , 200m/roll , 305m /roll , 500m/roll
Delivery Time:12-15 Work Days
Payment Terms:L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability:200000 Meters per Week
Contact Now

White CU Conductor Coaxial TV Cable For Satellite

Description
Length::305m/reelApplication::CCTV System, Satellite
Jacket::New PVCConductor Material::CU
Braiding::32/48/64/96/112Color::White ,Black
Number Of Conductor::1Type::Coaxial Cable CCTV
High Light:

CU Conductor Coaxial TV Cable

,

ODM Coaxial TV Cable

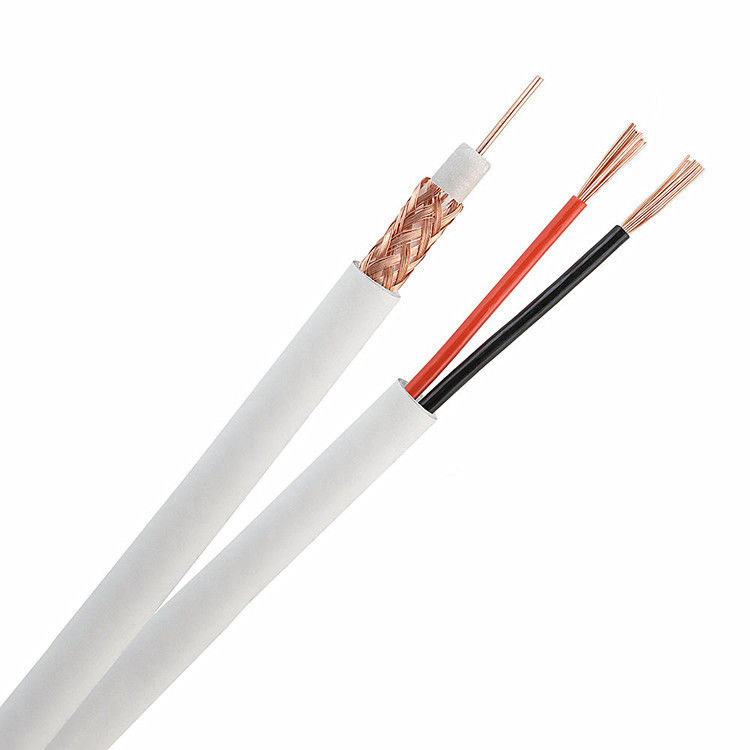

Manufacturer CCTV RG59 Coaxial Cable Siamese Cable With 2C Cable



Products Description

<td
Item
Material
Specification
Conductor
BC/CCS
0.81mm(20AWG,0.032'')
Dielectric
FPE
3.66mm(0.144'')
1st Shield

Al Foil
100%, Overlap>2mm
2nd Shield
BC or Al Braiding
40%-95%
53%
3rd Shield

Al Foil
-
100%, Overlap>2mm
4th Shield

BC or Al Braiding
-
-
40%

Jacket PVC/PE
Outer Diameter
6.1mm(0.24'')
6.1mm(0.24'')
6.73mm(0.265'')
Nominal Thickness
0.81mm(0.032'')
0.76mm(0.030'')
0.86mm(0.034'')
Messenger

Steel
1.30mm
Dielectric Adhesion

>20N/5cm

Breaking Strength of Messenger

82kgf

Impendence

75&plusmn;3 Ohm

Capacitance
50&plusmn;3.0 nf/KM




Return Loss (100% swept)
