| Wire Material:: | 0.57mm Bare Copper | Insulation:: | Foamed PE |
|---|---|---|---|
| Shiled:: | Al Foil | Application:: | Local Communication Cable, LAN Cable |
| Color:: | Customized | Sheath Material:: | LSZH |
| Transport Length:: | 1000ft (305m) | ||
| High Light: | 550Mhz Cat6A LAN Cable,23awg Cat6A LAN Cable,23awg cable ethernet cat 6 utp | ||

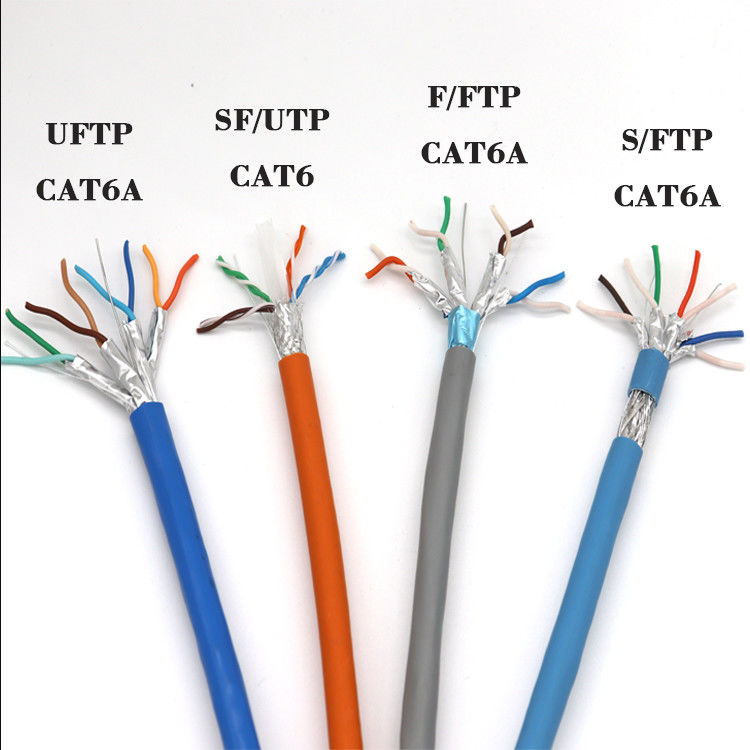

Customized 4pair 23awg 550Mhz Double Screen Internet Cable RJ45 Cable FFTP Cat 6a SFTP CAT6A F/UTP CAT6A
| Cable Overview |
Material Instruction
1. 23AWG Soft Plain Copper.
2. Eco-friendly,pollution-free and new materials selected.Promise new material only.
3. Insulation: Foam PE.
4. Eco-friendly PVC Jacket or LSZH Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-600MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.
Applications
155Mbps ATM
622 Mbps ATM
1000Base-T
10Gbase-T
| Cable Specification |
| Item Name | FFTP CAT6A Lan Cable |
| TYPE | Cat6A |
| Construction | FFTP |
| Conductor | 23AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | Foam PE |
| Drain Wire | 23AWG |
| Shielding | Double Aluminum Foil |
| Application | Lan cable |
| Jacket | LSZH |
| Operating temperature | -20° C - +70 ° C |
